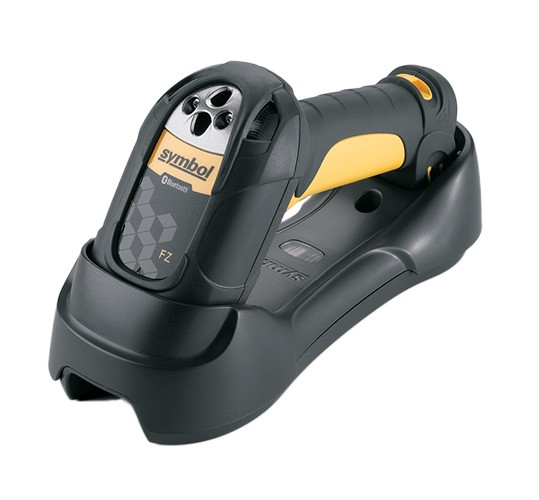

Symbol LS3578-FZ Specifiations

Physical Characteristics

Dimensions: 7.34 in. L x 4.82 in. W x 2.93 in. D
(18.65 cm H x 12.25 cm W x 7.43 cm D)
Weight: (including 14.6 oz. (414 gm)
LiON battery)
Battery: 2200 mAh Lithium Ion Battery
Battery charge time: Fully charged (100%) in 3 hours
Color: Twilight Black and yellow

Performance Characteristics

Scanner type: Retrocollective
Light source: 650 nm visible laser diode
Scan repetition: 36 scans per second typical
Minimum 5 mil (0.127 mm
element width:
Nominal working See decode zone
distance:
Print contrast: 25% minimum reflctive difference
Roll (Tilt)1 : +/- 20 degrees from normal
Pitch2: +/- 65 degrees from normal
Skew (yaw)3: +/- 50 degrees from normal
Decode capability: UPC.EAN, UPC.EAN with Supplemental,
GS1-128 (formerly UCC/EAN 128),
JAN 8 & 13, Code 39,Code 39 Full ASCII,
Code 39 Trioptic, Code 128, Code 128 Full
ASCII, Codabar (NW7), Interleaved 2 of 5,
Discrete 2 of 5, Code 93, MSI, Code 11,
Code 32, Bookland EAN, IATA, GS1DataBar
(formerly RSS)
Interfaces supported: RS232, Keyboard Wedge, IBM 468X/469X,
USB and Synapse

User Environment

Operating temperature: -4˚ to 122˚F (-20˚ to 50˚C)
Storage temperature: -40˚ to 140˚F (-40˚ to 60˚C)
Humidity: 5% to 95% relative humidity,
noncondensing
Sealing: Sealed to IP65 specifiations
Drop specifiations: Unit functions normally after repeated
6.5-ft. 2-m) drops to concrete
# of Cradle Insertions: 250,000+ insertions
Ambient light immunity: Immune to direct exposure of normal
offie and factory lighting conditions,
as well as direct exposure to sunlight.
Electrostatic discharge: Conforms to 20 kV air discharge and 8 kV
of contact discharge

Cradles STB 3508 and FLB 3508 STB 3578 and FLB 3578

Power 4.75 – 14 VDC 4.75 – 14 VDC
requirements:
Typical current
draw:
Not charging 10 mA 105 mA @5V
45 mA @9V
Fast rate 915 mA @5V 915 mA @5V
charge 660 mA @9V 660 mA @9V
Slow rate 480 mA @5V 480 mA @5V
charge 345 mA @9V 345 mA @9V

Radio specifiation

Radio: Bluetooth, Class 2, Version 1.2, Serial port
and HID Profies
2.402 to 2.480 GHz adaptive frequency
hopping (co-existence with 802.11 wireless
networks)
Data rate: 720 kbps
Radio Range: Up to 300 ft. in open air*
*See Bluetooth Radio Performance Technical Brief for
more information.

Regulatory

Input transient IEC 1000-4-(2,3,4,5,6,11)
protection:
EMI/RFI: FCC Part 15 Class B, ICES-003 Class B,
European Union EMC Directive,
Japan VCCI/MITI/Dentori
Laser safety: IEC825-1 Class 2
Warranty
The Symbol LS3578-FZ is warranted against defects in workmanship
and materials for a period of 3 years (36 months) from date of
shipment, provided that the product remains unmodifid and is operated under normal and proper conditions. See full warranty
for details.

Recommended Service

Service from the Start - Bronze
Depth of Field
Label Density LS3578-FZ

For more detailed information, please see the Product Reference
Guide in the Resource tab at www.motorola.com/ls3578f

Warranty

1 year Battery 6 m.
